Big Block Clones LLC

240cc Forged/Billet Short Block Kit

240cc Forged/Billet Short Block Kit

Regular price $724.95 USD
Regular price Sale price $724.95 USD
Sale Sold out

Everything you need to assemble a fully forged and billet 240cc small block GX200 clone Short Block. You will need to clearance the block and your cam, but this crank, rod, and piston will all drop right into the TC225 block with the piston 0.011"/.3mm above the deck. Use a head gasket with a minimum of 0.045"/1.1mm thickness. Clearancing will be required for assembly.

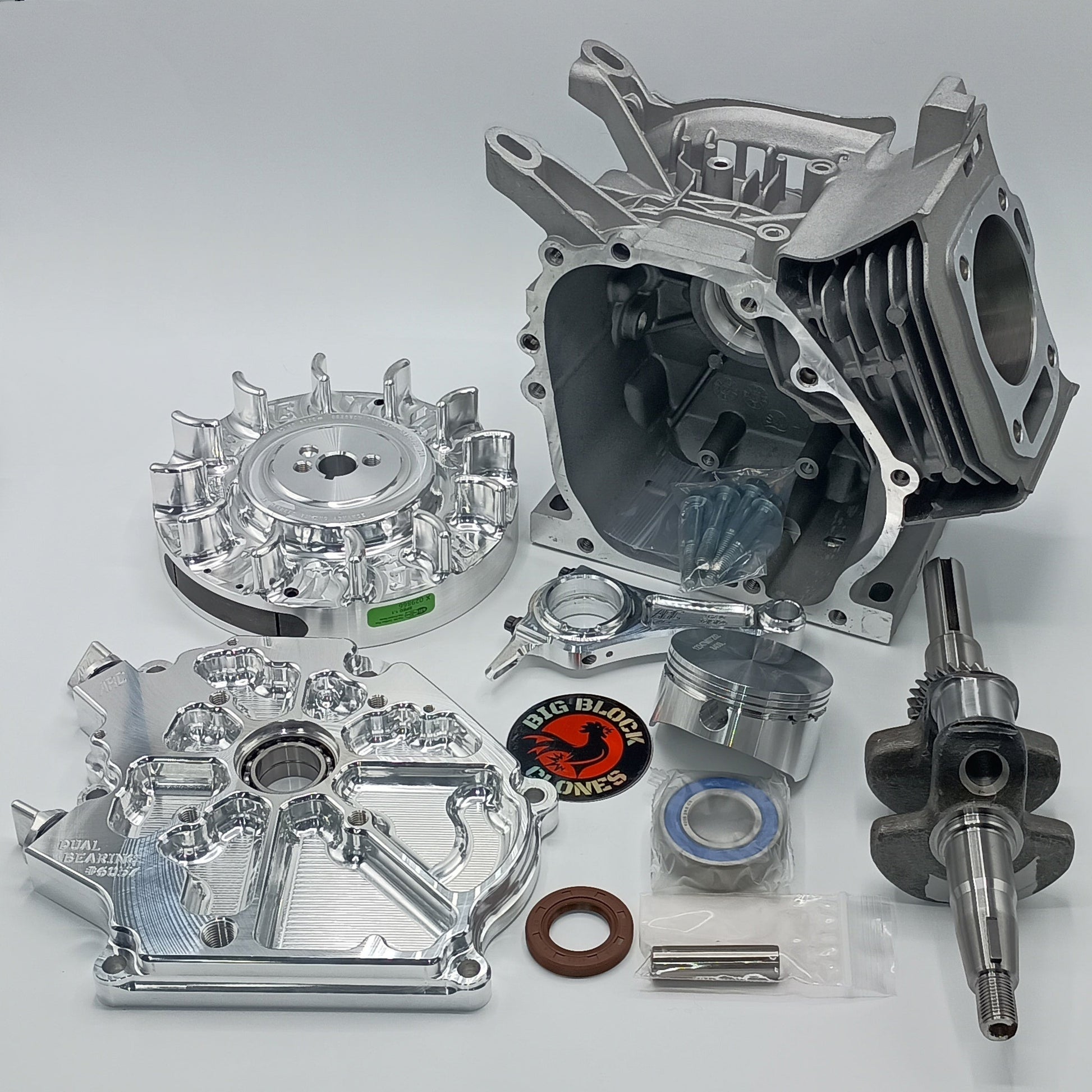

This kit includes the following:

72mm bore x 136.8mm deck height TC225 block

Forged 59mm crankshaft with GX200/Clone (1.181"/30mm) rod journal

ARC 6234 billet 3.595" connecting rod

Wiseco forged 2.832" three ring piston with rings and clips

ARC 6521 Short heavy duty tool steel wrist pin

ARC 6057 dual ball bearing billet side cover

ARC 6619 billet flywheel

1x Crankshaft bearing

1x Crankshaft seal
