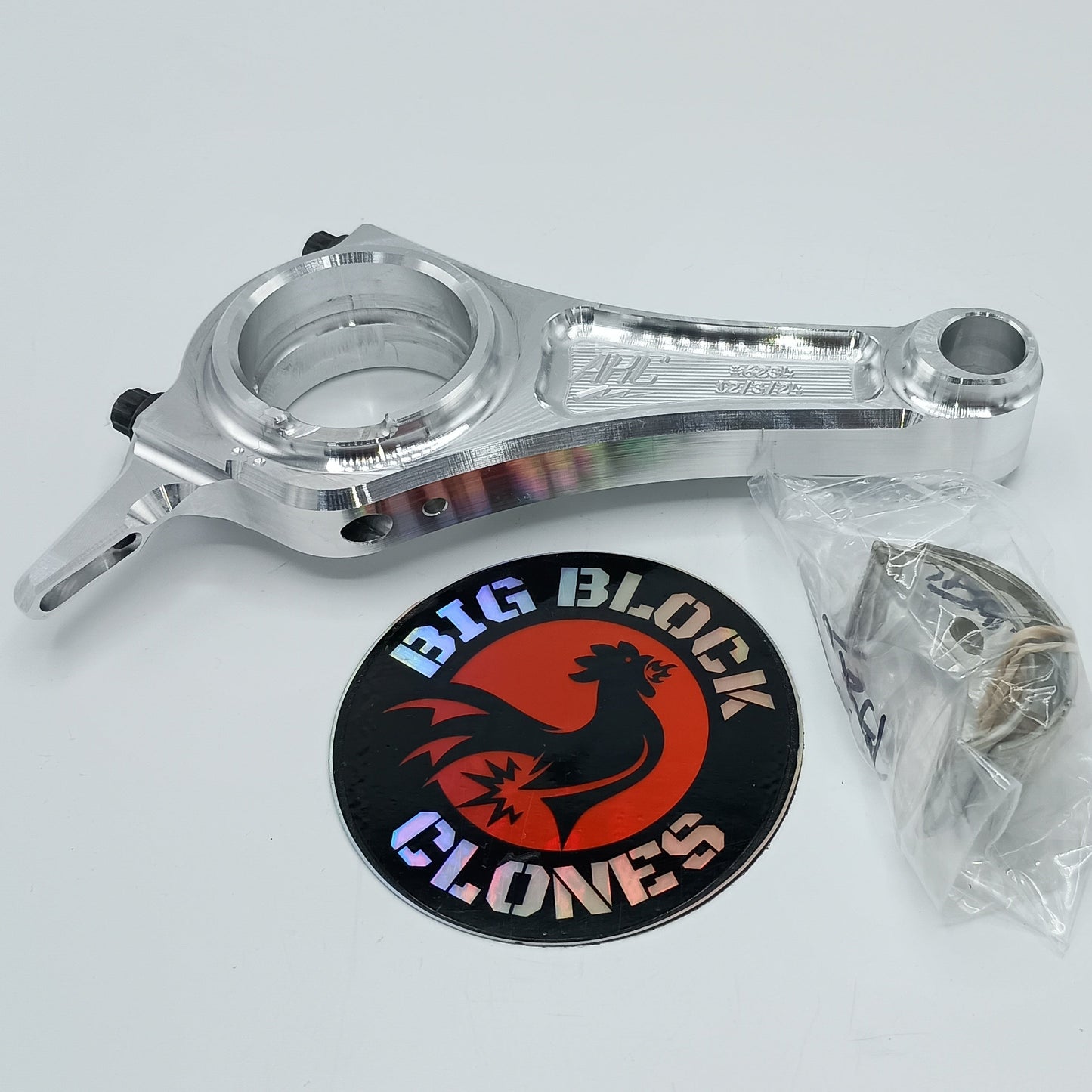

ARC Billet Long Rod - 6234 - 3.595" x 1.181" x .490" - GX200/Clone crank to Wiseco piston

The New ARC "Drop In" long rod for the Honda GX200 and Clone 196cc engines does not require cutting down the top of the 11132P 2 ring Wiseco piston, or can be used with the new 3 ring Wiseco pistons. This rod measures 3.595" center to center for a 1.180" crank pin with .490" wrist pin and is designed to be used with aftermarket high-performance pistons.

• Bearings and custom designed high tensile strength ARP bolts are included.

All of ARC's rods are CNC machined from aircraft grade domestic 7075 T-651 aluminum. These OHV rods are designed to utilize the higher compression ratios and high RPMs of racing OHV engines. Key Features Include: Oil groove in the crank bore that is fed through a channel in the integrated forced oil dipper arm. Oil groove in the wrist pin bore that provides a reservoir of lubricant to the wrist pin as well as reinforced wrist pin bosses on the rod .

Fits:

Rod bolt torque: 170 Inch/lbs lubricated

***Will Not fit the Hemi or Non Hemi Predator cranks***
