Stage 0 Shredder Head and Carburetor Bundle
Stage 0 Shredder Head and Carburetor Bundle

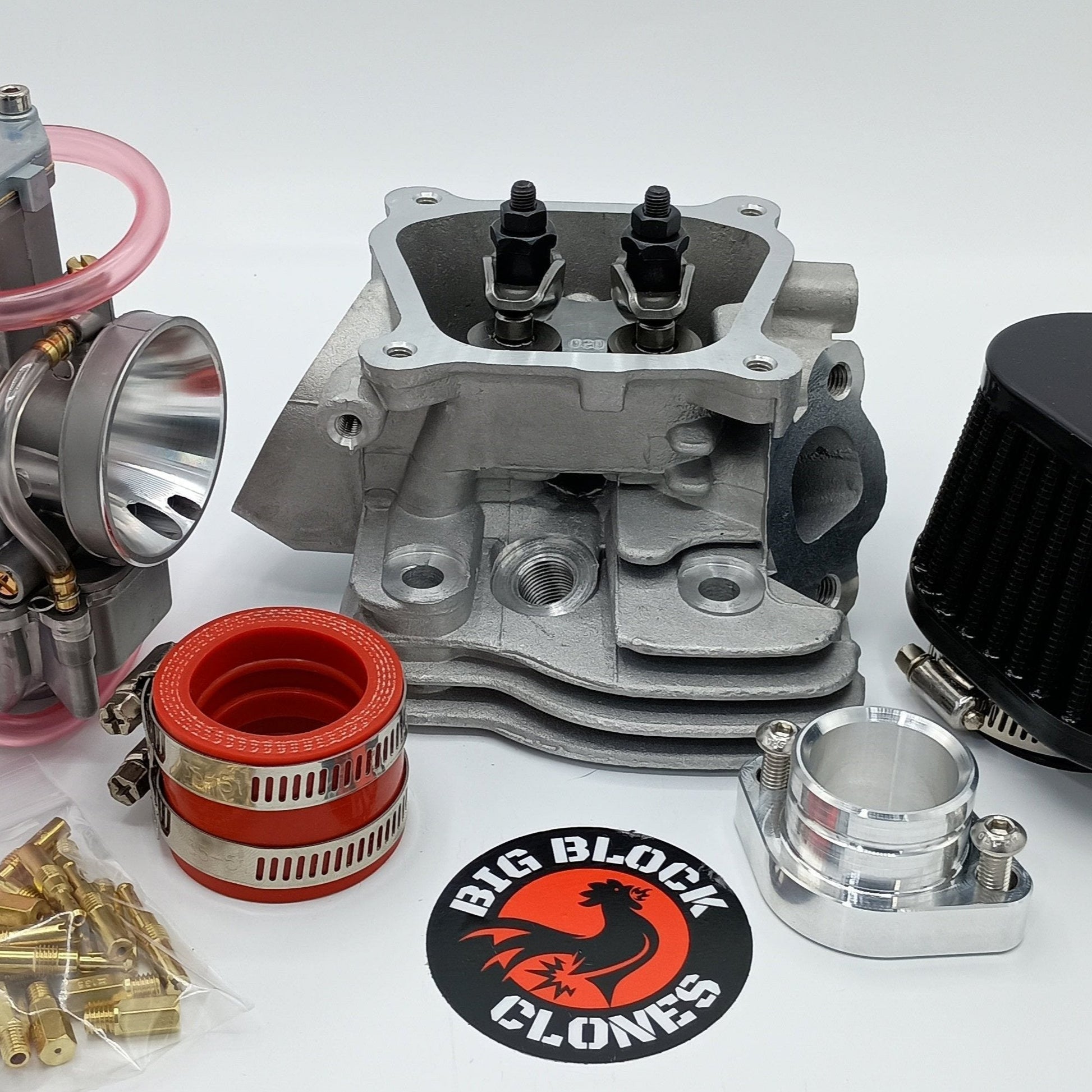

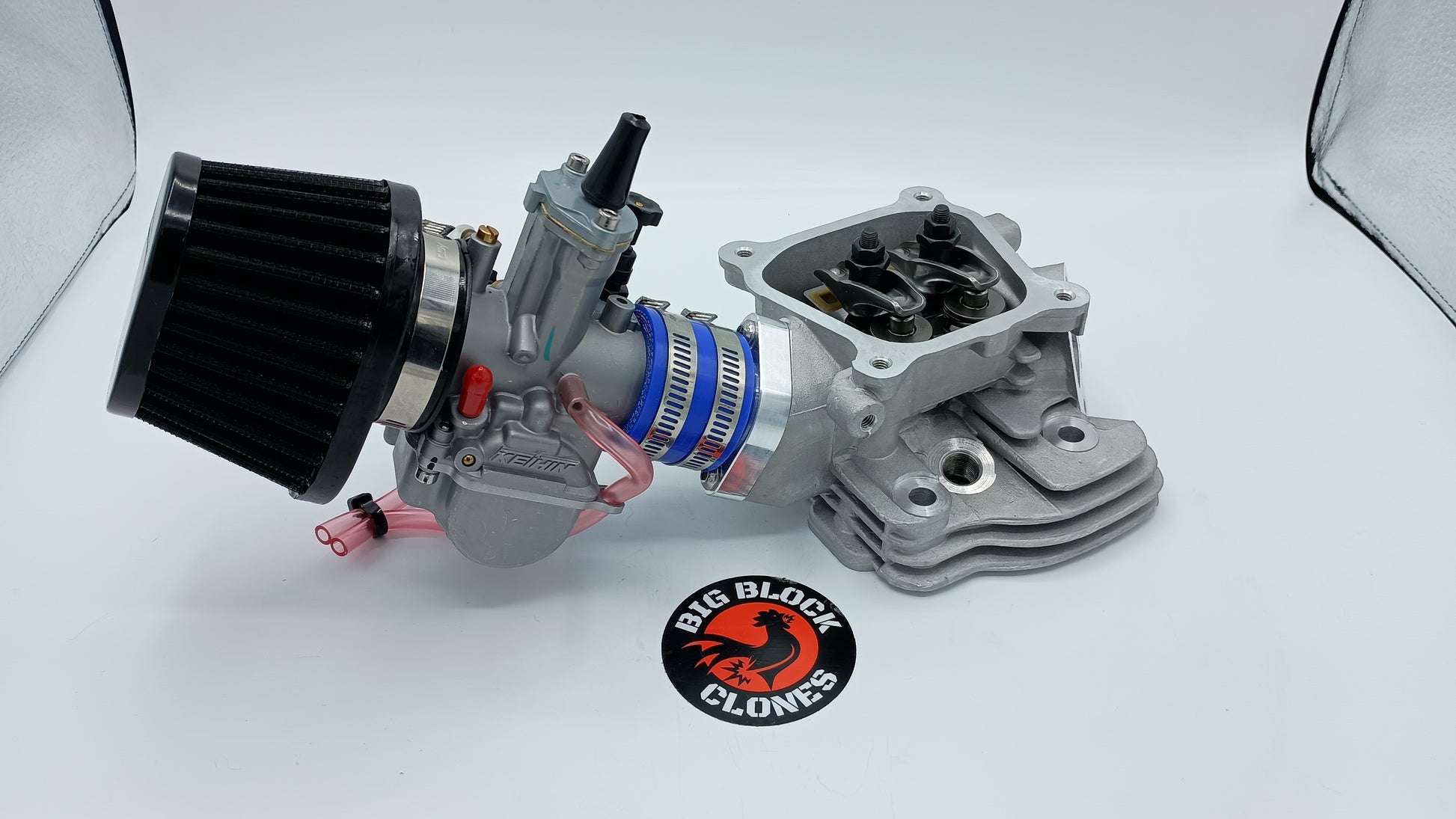

This all-in-one head, carburetor, and accessories bundle saves you time, money, and takes the guess work out of building a powerful setup for any kart or minibike. This high performance induction bundle includes the following:

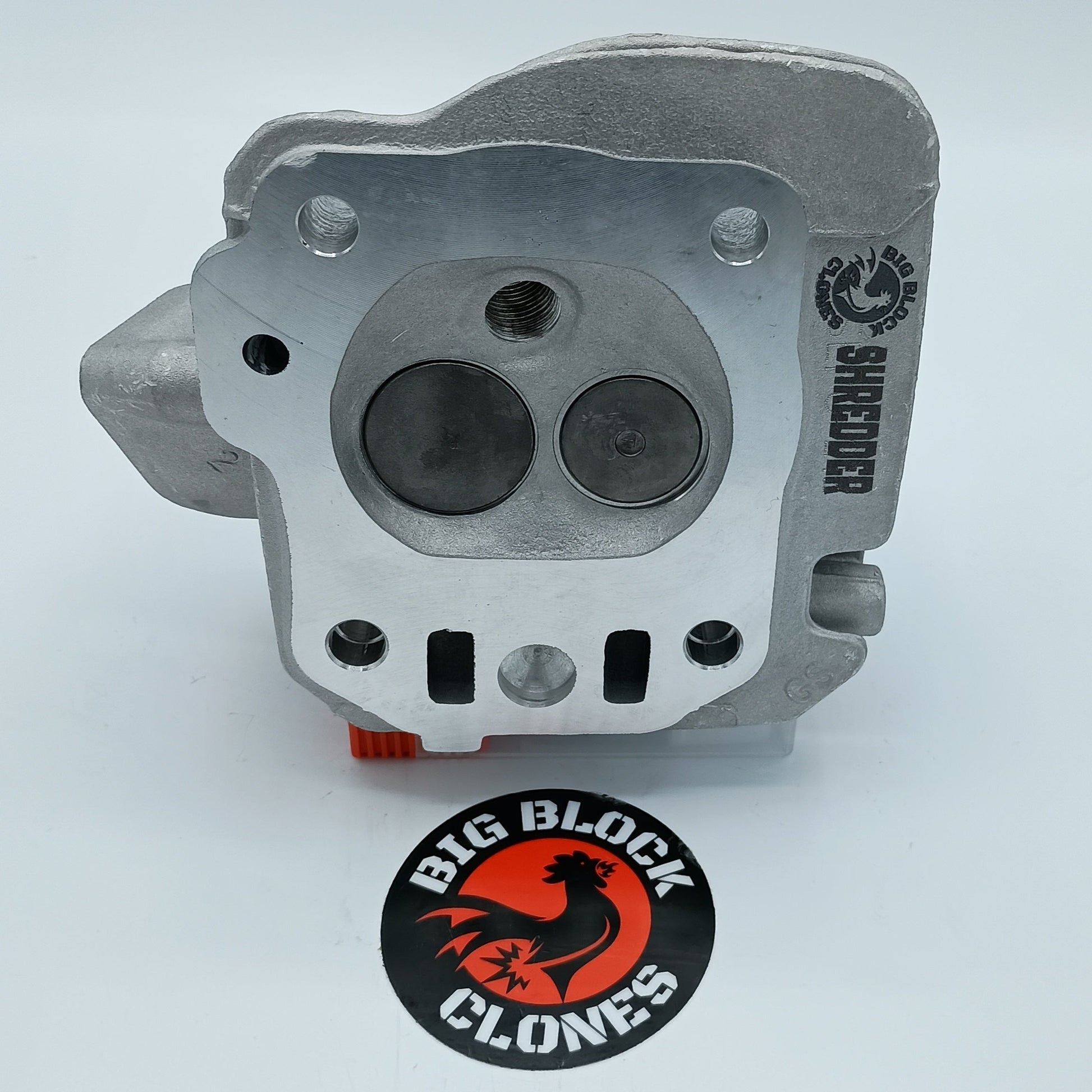

- Assembled and ready to run Shredder Stage 0 cylinder head.

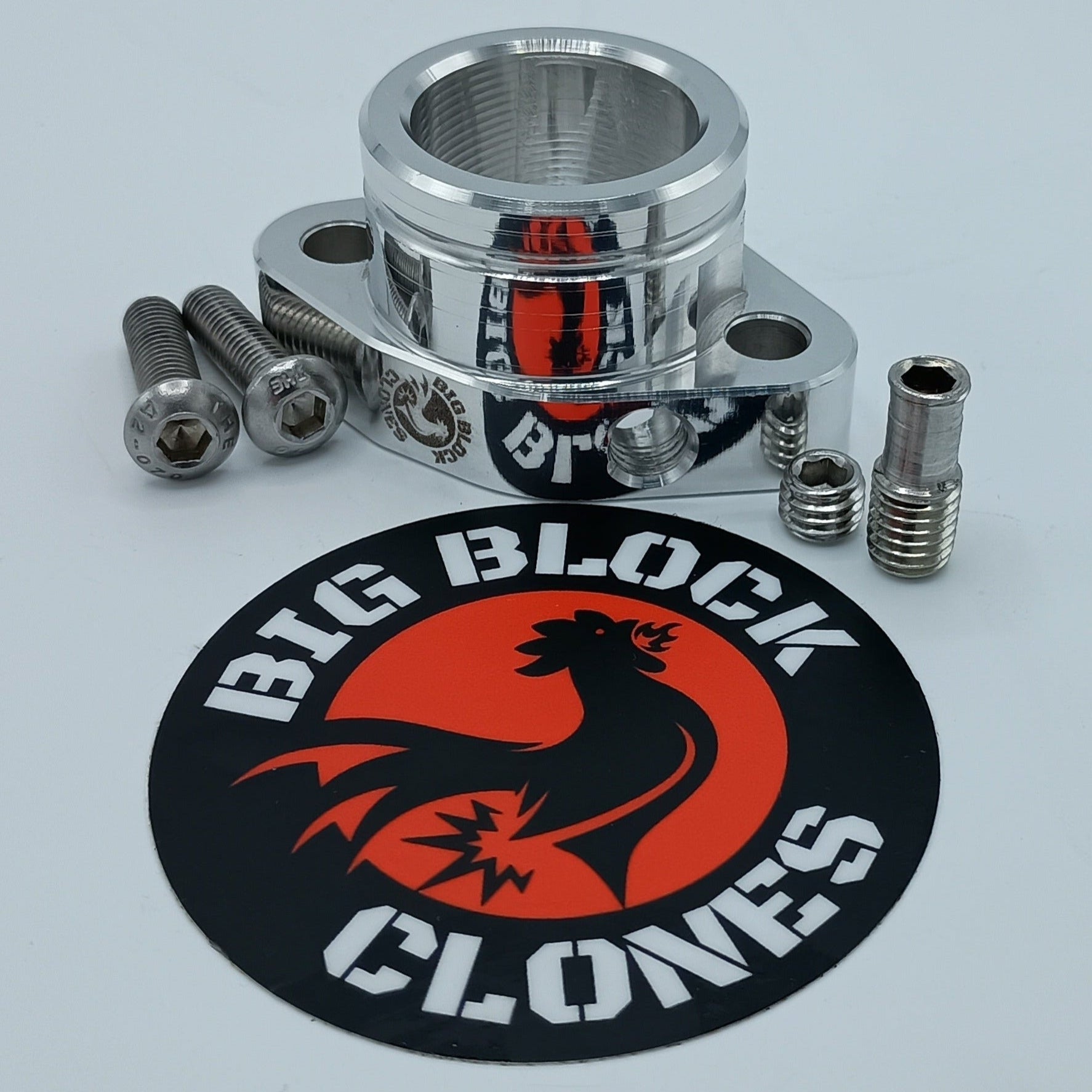

- Precision machined port matched billet cylinder head to carburetor adapter with stainless button head hex screws and o-ring seal.

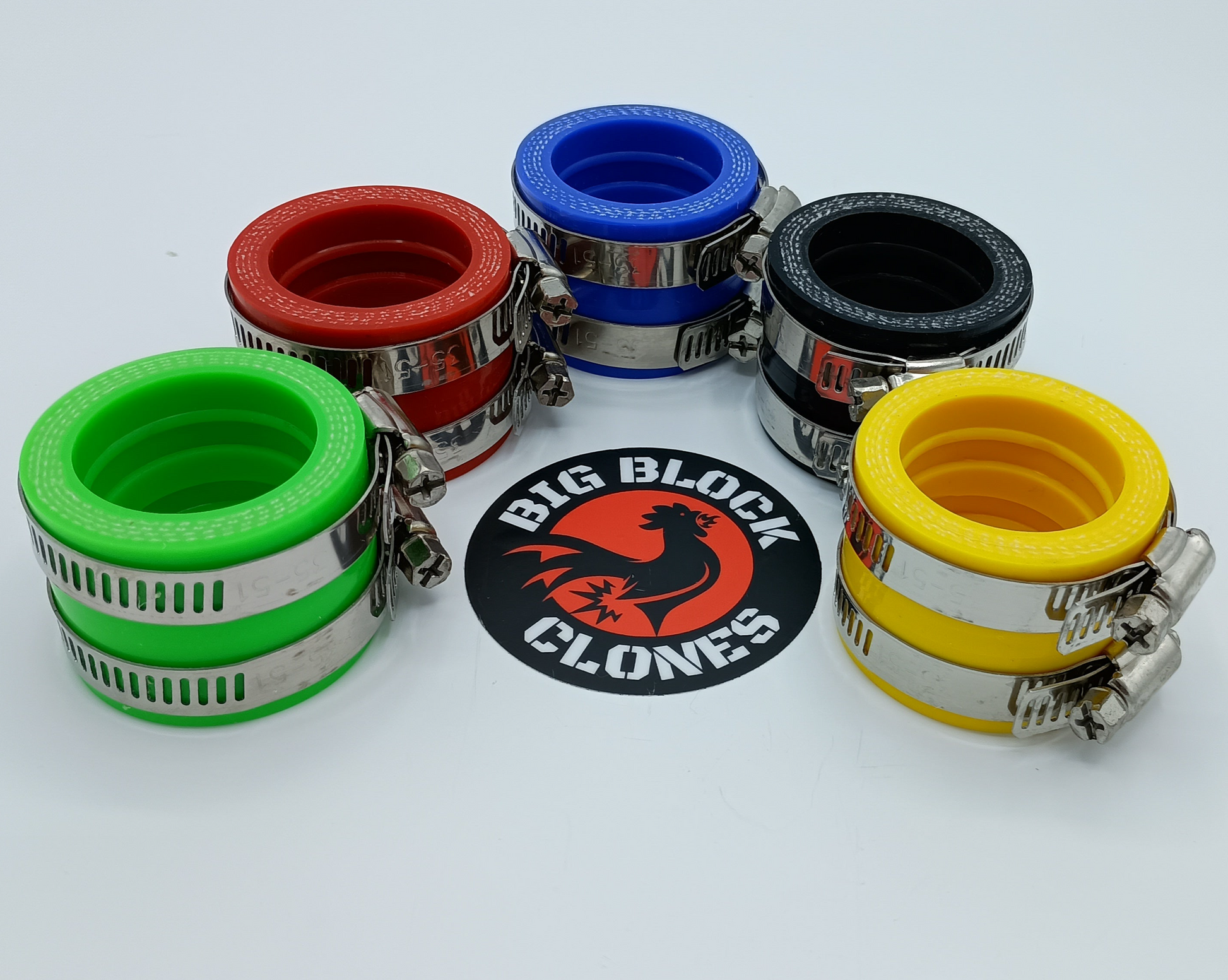

- Special thick ribbed fiber reinforced silicon rubber boot in your choice of five different colors with clamps.

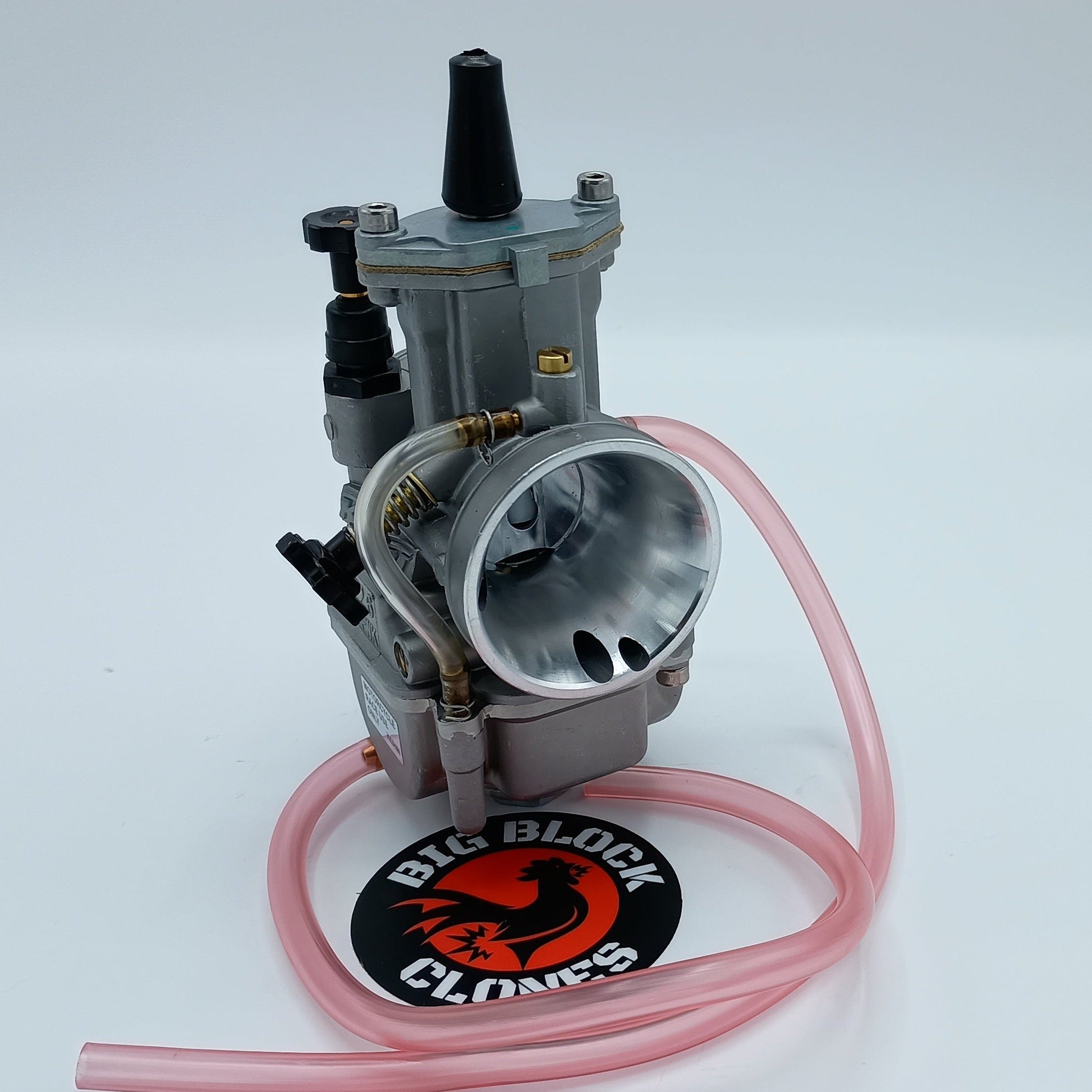

- High quality 28mm PWK style carburetor with jet kit included.

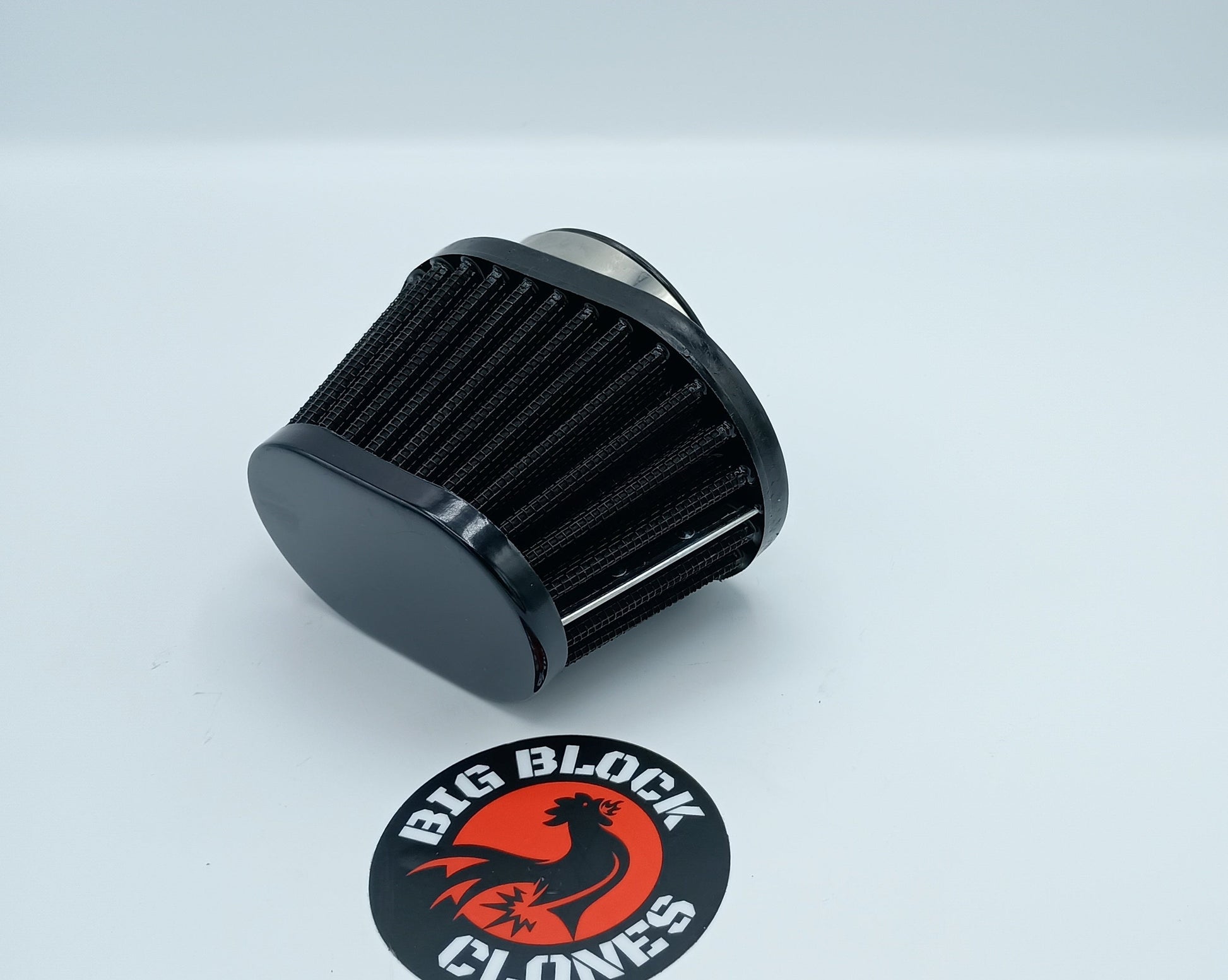

- Large high flow cotton gauze air cleaner element with clamp.
Everything you need from the head and induction side to get your Predator 212, 224, Ducar, or other small block GX200 style engine moving fast. You can use stock length non-hemi pushrods with this head and intake combo and everything will bolt together just fine. Add a billet connecting rod, flywheel, and Dyno 265 or 308 cam with stock length non-hemi chromoly pushrods for 18+HP. Remember that our Stage 0 Shredder head is equivalent to the other guy's Stage 3 heads.
If you are bolting one of these heads on any non-hemi Predator or other Rato engine you'll need our stepped head dowel pins to adapt the 11mm holes in the block to the 10mm holes in these heads.
Sold in pairs here:
Stepped Head Dowel Pin Set - 10mm to 11mm
Here are OUR flowbench's manometer numbers for the small block heads that we've tested:
Engine Designation | .100" | .150" | .200" | .250" | .300" | .350" |
Loncin H225 hemi | 0.30 | 0.44 | 0.53 | 0.53 | 0.53 | 0.53 |
Ducar 212 hemi | 0.25 | 0.45 | 0.57 | 0.57 | 0.58 | 0.59 |
Predator 212 hemi | 0.25 | 0.45 | 0.54 | 0.59 | 0.60 | 0.62 |
Predator 224 non-hemi | 0.32 | 0.56 | 0.64 | 0.66 | 0.70 | 0.73 |
Predator 212 non-hemi | 0.23 | 0.47 | 0.66 | 0.70 | 0.75 | 0.79 |
Northstar c225 | 0.28 | 0.68 | 0.70 | 0.73 | 0.77 | 0.81 |
Wildcat WC946 | 0.38 | 0.67 | 0.77 | 0.81 | 0.82 | 0.83 |
Shredder Stage 0 | 0.28 | 0.54 | 0.74 | 0.84 | 0.91 | 0.94 |
Shredder Stage 1 | 0.31 | 0.63 | 0.92 | 0.96 | 1.03 | 1.08 |
And here is a link to our FAQ on the Shredder head with a more detailed explanation:
Shredder Head FAQ
