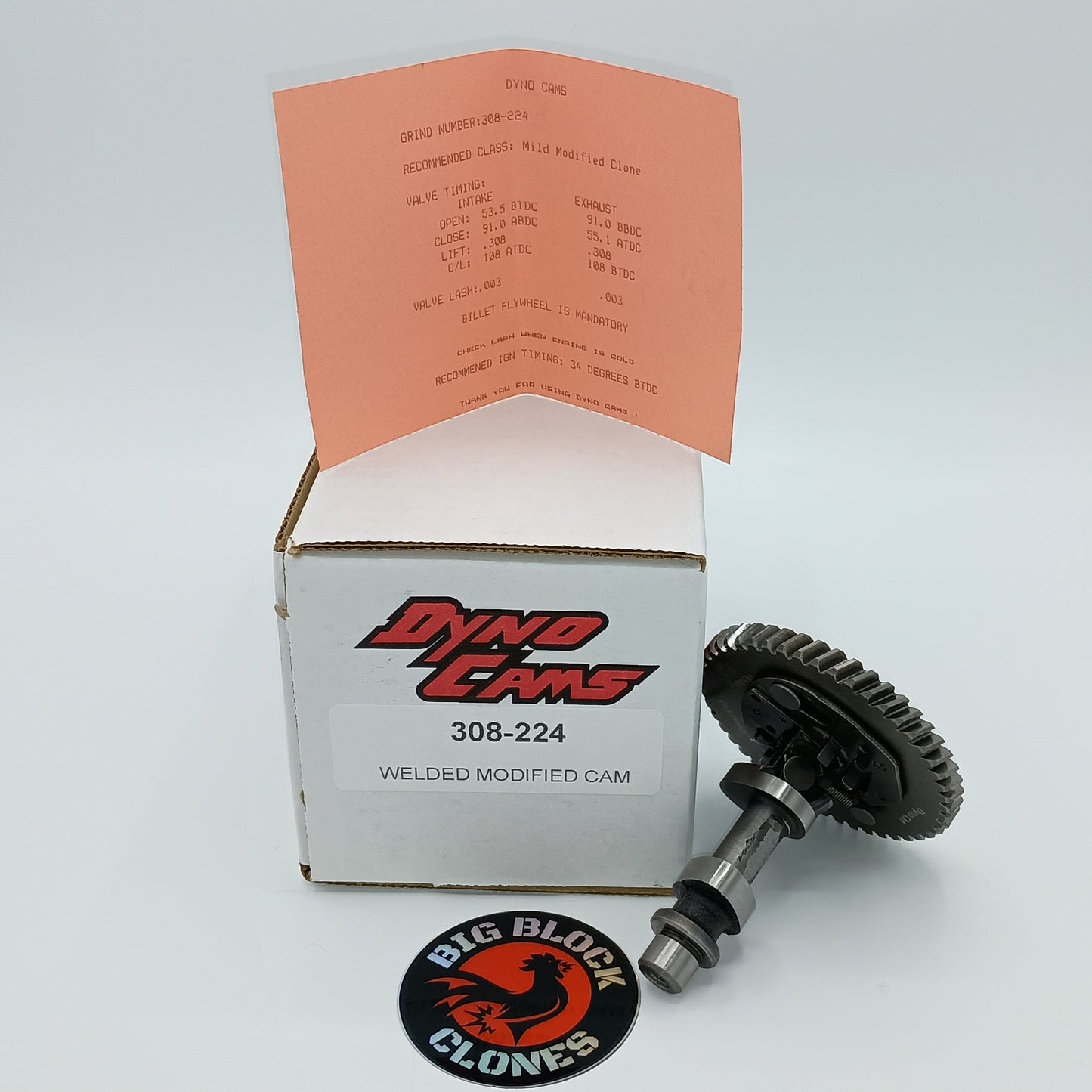

DynoCams Camshaft - 308 Grind - Clearanced for 58mm stroke cranks - 308-224
DynoCams Camshaft - 308 Grind - Clearanced for 58mm stroke cranks - 308-224
Regular price
$133.00 USD
Regular price
Sale price
$133.00 USD
Unit price
/
per
Couldn't load pickup availability
Description
- The 308 is our most popular grind for modified classes.
- Easy on the valve train and has a very wide power band.
- Requires an upgraded spring package, billet rod, and billet flywheel.
- The lobes are welded for extra durability, extending the life of this cam.
The 224cc camshafts have .550" main journal sizes. The cams have been clearanced between the lobes and feature narrow lobes. These modifications allow for rod clearance due to the 58mm stroke. The compression release is also thinner to clear the 58mm crank counter weight. These camshafts work with Harbor Freight Predator 224cc and Tillotson 224cc engines.
Specs
| Engine: | Harbor Freight Predator 224cc, Tillotson 224cc |
|---|---|
| Recommended Class: | Modified |
| Target (MAX) RPM: | 8200-8400 |
| Spring Pressure (In / Ex): | 32 lbs |
| Valve Lash (In/Ex): | .003" |
| Ignition Timing: | 34 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 53.5 BTDC | 91.0 BBDC |
| Close: | 91.0 ABDC | 55.1 ATDC |
| Lift: | .308" | .308" |
| C/L: | 108.0 ATDC | 108.0 BTDC |
| DUR @ 50: | 244.2 Deg | 244.6 Deg |
