Big Block Clones LLC

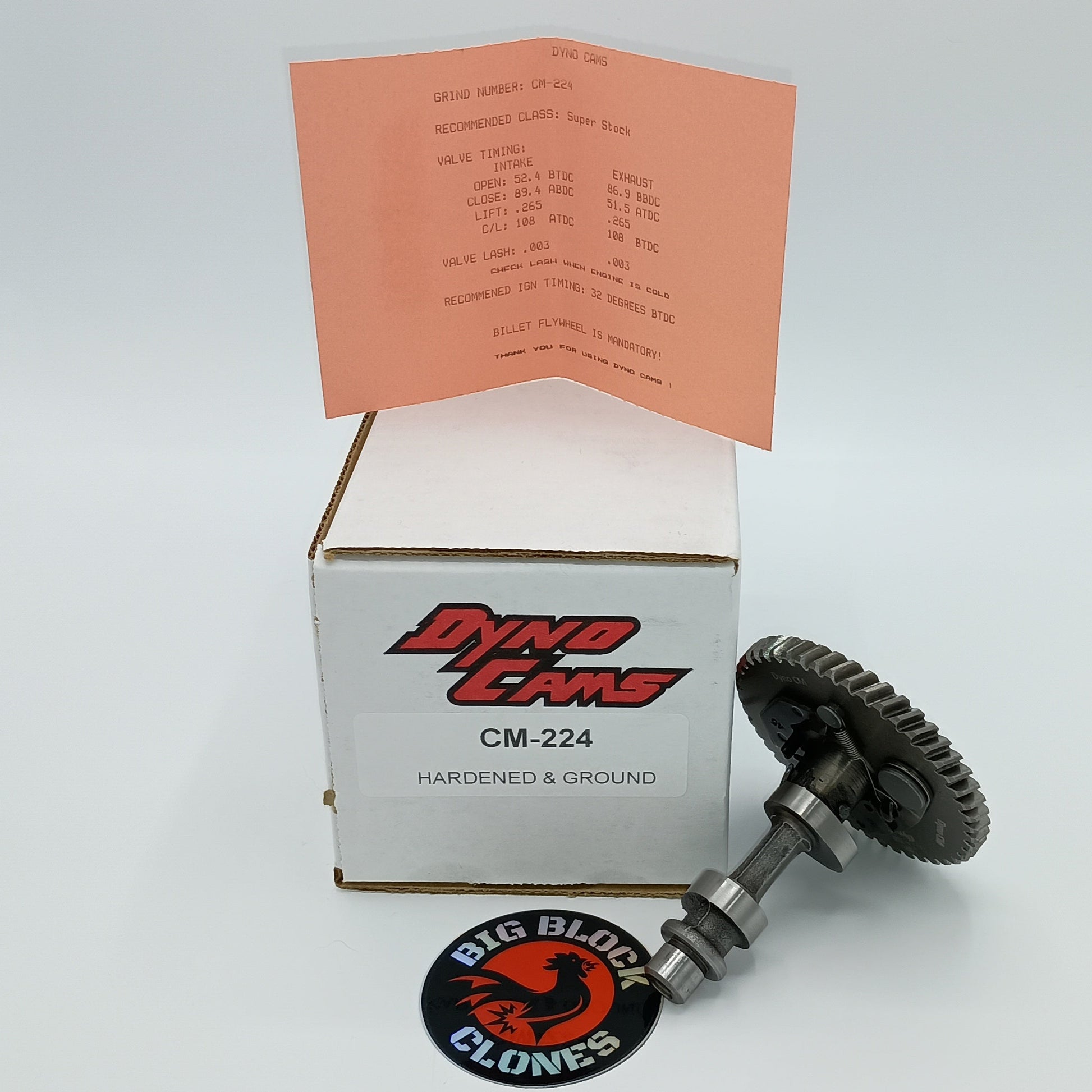

DynoCams Camshaft - CM Grind - Clearanced for 58mm stroke cranks - CM-224
DynoCams Camshaft - CM Grind - Clearanced for 58mm stroke cranks - CM-224
Regular price
$62.00 USD
Regular price
Sale price
$62.00 USD
Unit price
/
per
Couldn't load pickup availability
This cam works great with our standard Shredder head and carburetor package! Set your clutch or torque convert to stall at 4200rpm and rocket away!
Description
- The CM is a mild cam for great mid-range torque and requires an upgraded spring package, billet rod, and flywheel. More duration on the intake for use with bored stock or Tillotson carb.
- The lobes are hardened for extra durability, extending the life of this cam.
The 224cc camshafts have .550" main journal sizes. The cams have been clearanced between the lobes and feature narrow lobes. These modifications allow for rod clearance due to the 58mm stroke. The compression release is also thinner to clear the 58mm crank counter weight. These camshafts work with Harbor Freight Predator 224cc and Tillotson 224cc engines.
Specs
| Engine: | Harbor Freight Predator 224cc, Tillotson 224cc |
|---|---|
| Recommended Class: | Mild Modified |
| Target (MAX) RPM: | 7500 |
| Spring Pressure (In / Ex): | 20 lbs |
| Valve Lash (In/Ex): | .003" |
| Ignition Timing: | 32 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 52.4 BTDC | 86.9 BBDC |
| Close: | 89.4 ABDC | 51.5 ATDC |
| Lift: | .265" | .265" |
| C/L: | 108.0 ATDC | 108.0 BTDC |
| DUR @ 50: | 236.9 Deg | 236.5 Deg |
