Level II High Lift Valvetrain Hardware Kit for Shredder Heads - Up to .450" Lift

Level II High Lift Valvetrain Hardware Kit for Shredder Heads - Up to .450" Lift

Regular price $124.95 USD
Regular price Sale price $124.95 USD
Sale Sold out
Include Stock 1.2:1 ratio Shredder Rocker Arms?

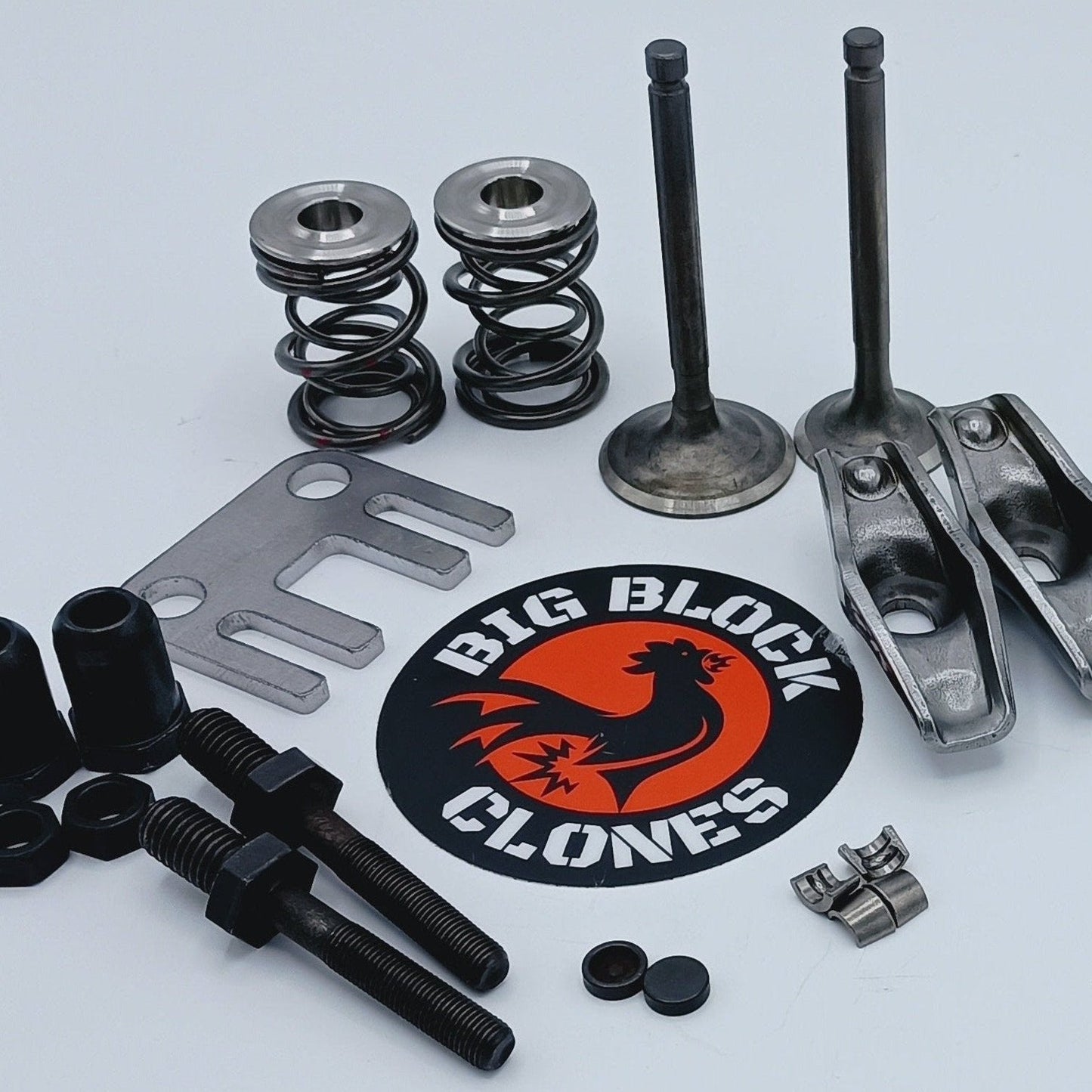

This kit contains everything you'll need to assemble a Shredder head that can handle up to 0.450" lift. This is the valvetrain used in our RPM+ and Level II heads, so if you have a standard Level I Shredder head you can by this and convert it to an RPM+.

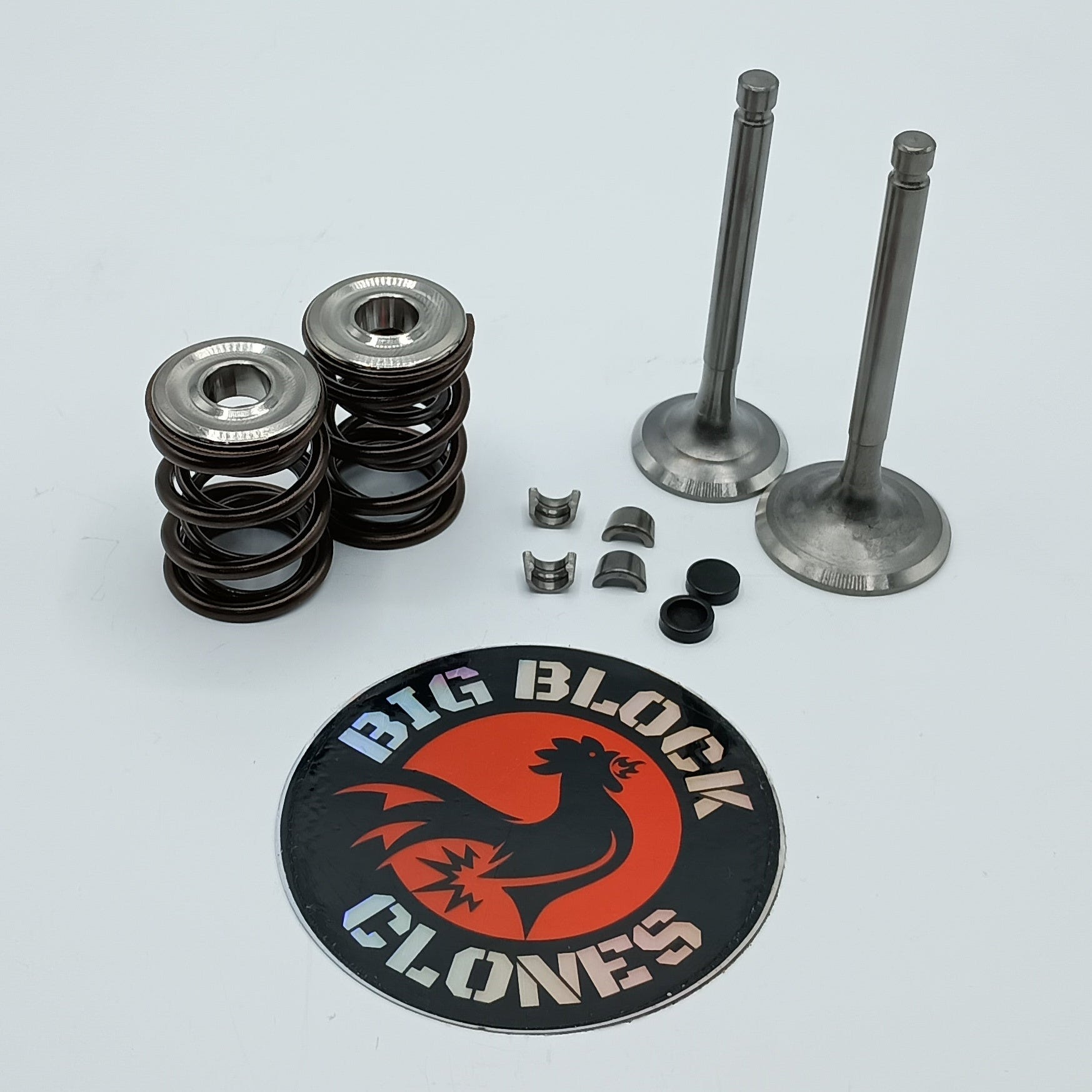

SPECS:

28.5mm x 2.590" x 5.5mm stem intake valve

24mm x 2.570" x 5.5mm stem exhaust valve (sits 0.020" deeper in Shredder heads)

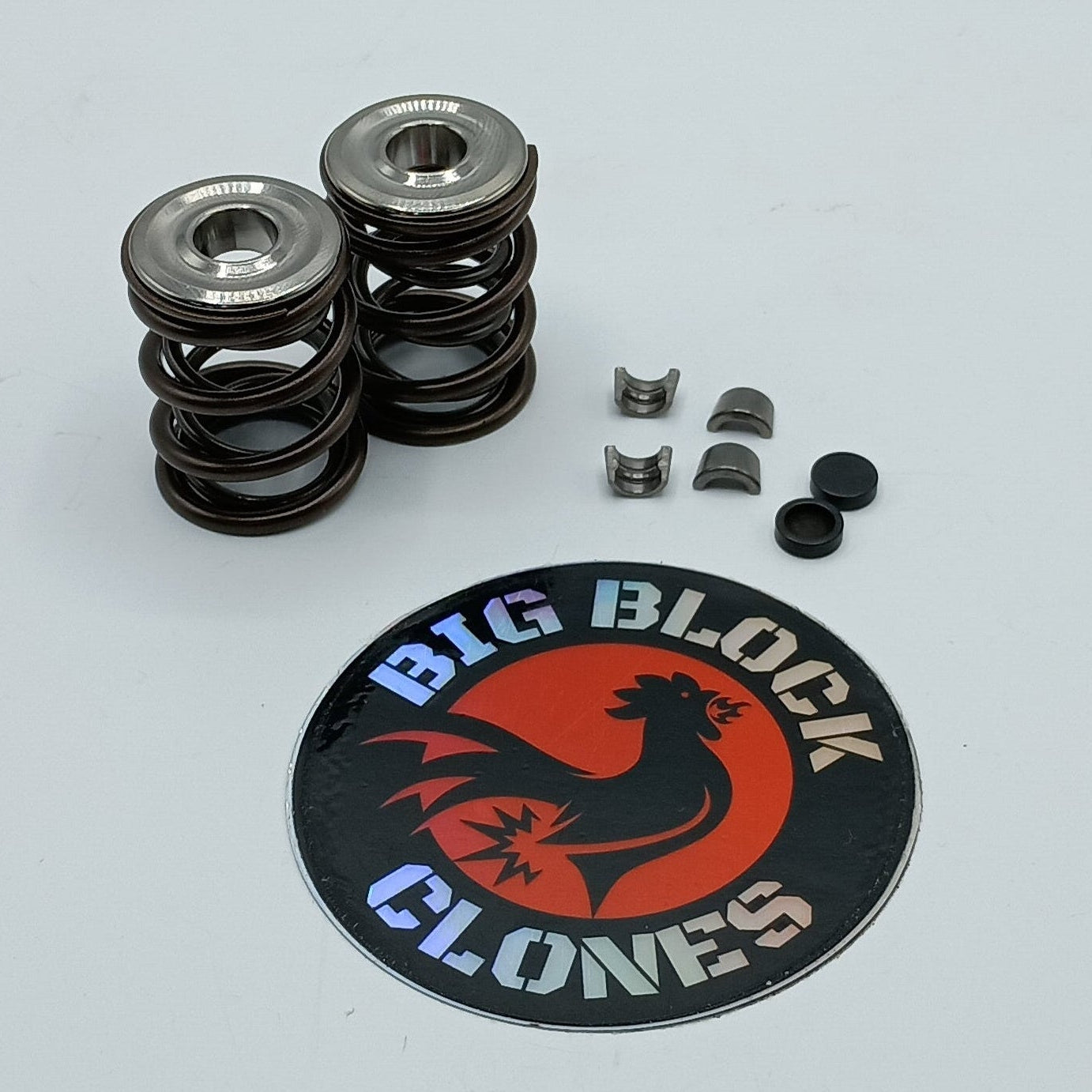

DynoCams 36lb springs

2x 0.015" steel spring seats

Titanium retainers (lighter and stronger than aluminum with more fatigue resistance)

Steel medium groove keepers

Lightweight lash caps

Steel pushrod guide plate

Optional 1.2:1 ratio 0.095" thick stamped steel rocker arms with studs, lash adjusters, and locking nuts. **Rocker arms are safe up to .380" valve lift, but the lower opening can be ground on the valve side (not pushrod side) from .350" to .390" total length and they will support up to .450" lift without binding on the rocker studs.**

*Use for up to .450" lift on Shredder head*
*Works best with .400" net lift at the valve*
